Steel Products
-
TMT Bars in BIS grades : Fe 415/415D, Fe 500/500D, Fe 550/550D & Fe 600 : Sizes 8 to 32 mm dia based on Turbo Quench Technology & design, which guarantees the specification of IS: 1786/2008 & also the properties of various international standards.
-
Wire Rods as per IS: 2062/2012, IS: 7887/1992
-
Cold rolled Ribbed bars & Cold Drawn gauge Wires upto size of 1.6 mm
-
MS BILLETS as per IS: 2830/2012
-
Ferro Alloys : Ferro Silicon, Ferro Manganese, Silico Manganese, Ferro Chrome & Sand Castings
IN HOUSE FACILITY
To have control on every step of manufacturing, the group have installed the following modern facilities for producing of more than 3.0 lakh MT per annum of steel:
-
300 TPD sponge Iron Plant
-
Sinter Plant
-
Six (6) nos. 12 pulse Steel Melting Induction Furnace
-
LRF (Ladle Refining Furnace)
-
Continuous 3 strands Billet Casting Machine with PLC controlled Automatic Mould Leveling speed & cooling Control Systems.
-

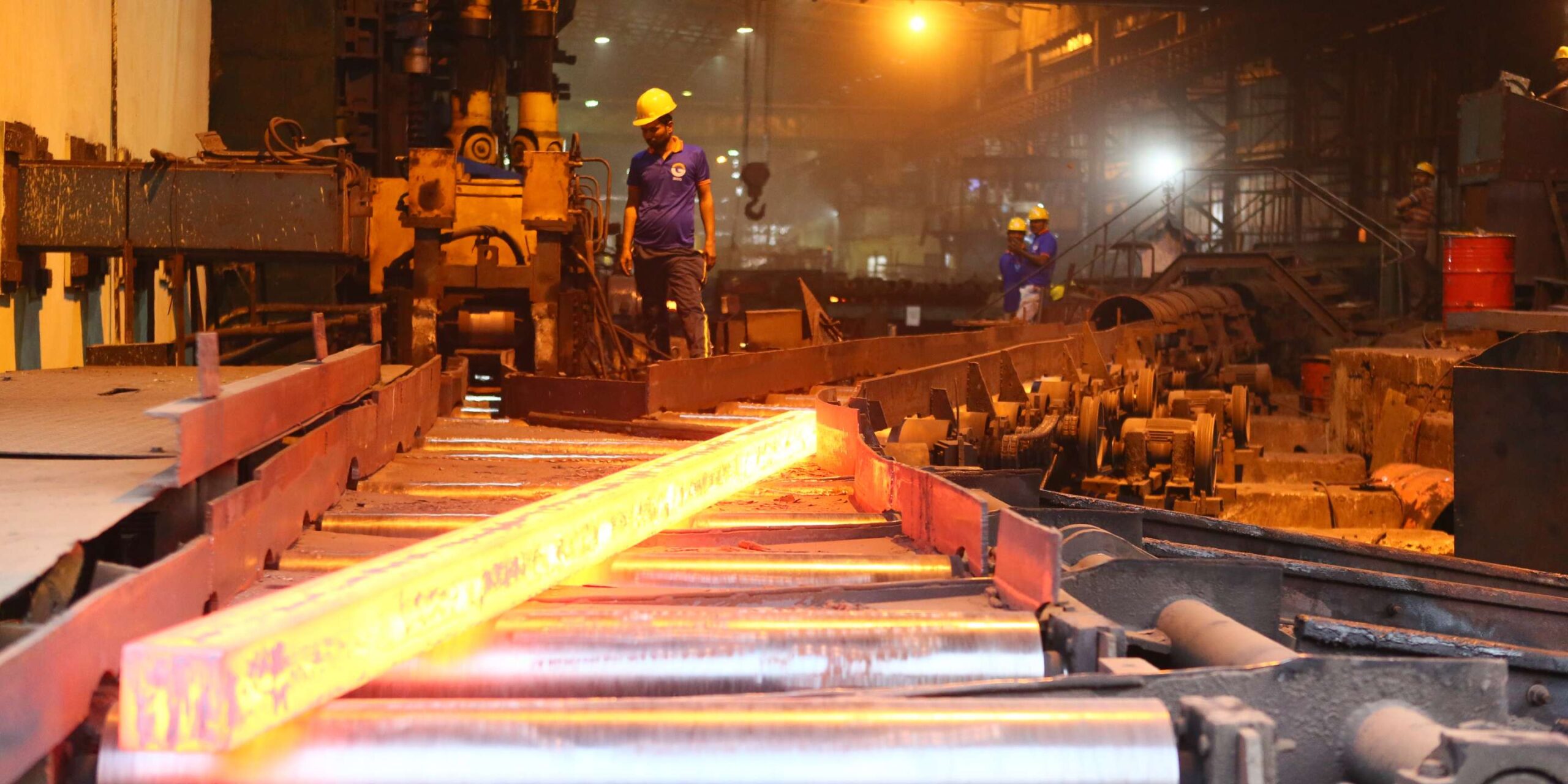

Completely automatic & computerised Rolling Mills with cantilever type stands for superior quality.
-
“Turbo-Quench” of Herbert Rothe, Germany certified most efficient quenching system & “walk-in” type 80 meters long cooling bed.
-
Ultra Modern & Computerized Testing Laboratories with Spectrometer & also latest testing Machines for:
-
Physical Testing including 0.2% proof stress, tensile strength & elongation
-
Bend, Re Bend & Pull out testing and strengthening
-
Most advanced & modernized Chemical laboratory with Spectrometer
-
-
We have the complete in House facility for manufacturing of Billet in BIS 2830/2012 Grade. We are the first party to receive BIS approval for manufacturing of IS: 2830 Grade billet Ingots.
Our Worldclass Technology
Our TMT steels bars are based on latest technology & design which guarantees the properties to produce as per international standards. German BST 420 S/500 S of DIM 488, British Gr. 460 of Bs 4449-1988 Egyptian Standard 262/1988 Gr. 36/52 and 40/60, Fe 415,500 & 550 of IS : 1786/'85, JIS.G.3112 1975 SD 30, 35, 40, 45 & 50 Swiss to par 550 S of SIA 162, French Fe E50 of NF A35-016. High strength reinforcement bar in grades of Fe-415, 500 and 550 as per IS: 1786/’85, that achieve their properties by on-line computerized controlled thermo processing.
Awards & Appreciations
We have received the prestigious "Ispat Udyog Ratan Award 2011" & "Dhatu Nayak Award 2012" for our quality & excellence. We are also awarded by UNDP, jointly with Ministry of Steel & as Energy efficient unit.
OUR SPECIAL FEATURES
-
Strength and Elongation
Higher strength and better elongation is a unique feature of OUR TMT bars. Designed to be much stronger than conventional bars, OUR TMT Bar build's a safer and stronger concrete structure with laser quantity of steel with a great savings over the market conventional requirement. OUR guarantees excellent Weldability, Ductility and Bendability. Tapered edge of OUR TMT bars provide better Weldability that help in making high strength connections with little overlap. Due to its low carbon content, these bars, can withstand better bending and re-bending without any reduction in strength.
-
Earthquake Resistance (EQR)
For earthquake resistance, TMT bars structures need to have balanced stiffness, strength and ductility between its members, connections and supports. OUR TMT bars provide very high strengths with comparatively higher elongation values and better ductility, making them more earthquake resistance.
-
Heat Resistance
Test result for OUR TMT bars, have shown no loss of strength upto 500 degree C. At a temperature range of 550 degree C to 600 degree C, the yield strength decreases by 20N/Sq mm only. That is why, OUR TMT bars can be used easily in constructions prone to fire hazards.
-
Corrosion Resistance (CRS)
Our TMT bars are more corrosion resistant than normal CTD bars. The fine layer of scale forms a protective layer, thereby preventing further corrosion. Whereas in CTD bars, this initial layer of scale falls down during twisting. Corrosion resistance can be further improved as per customer needs, by altering material chemistry.
QUALITY POLICY
-
High Quality Product : Producing superior & high quality products in the unique automated cantilever type rolling mill & services unmatched in the Industry.
-
Continuous Quality Improvement : Continuous technology up-gradation in keeping with international standards.
-
Best Services : Constant endeavour to improvise & add value to the products.
-
Maximising value : Following quality system& methodologies, maximising savings & profitability.
OUR ASSURANCE TO YOU
-
Quality : providing high quality products consistently.
-
Economy : cost saving in buying our product.
-
Commitment : timely delivery at all places.
-
Customer satisfaction : Assured supply; your peace of mind.
-
Safety for all
-
Customer Preference : at all times.
OUR SUPERIOR PRODUCTS
-
Made from 100 % tested billets
-
High durability
-
High Corrosion resistant
-
Earthquake and Fire resistant
-
Easy to cut & bend
-
Strong bonding
Sub Categories
| Element Composition, Max % | BDG6/TORCON | BIS |
|---|---|---|
| Carbon | 0.25 | 0.25 to 0.30 |
| Manganese | 0.5 to 1.2 | – |
| Sulphur | 0.030 to 0.050 | 0.040 to 0.055 |
| Phosphorus | 0.030 to 0.050 | 0.040 to 0.055 |
| Carbon equivalent | 0.29 to 0.38 | 0.27 to 0.42 |
| GRADE | YIELD(min N / sq mm) | UTS (min N / sq mm) | ELONGATION (min %) | |||
|---|---|---|---|---|---|---|
| BIS | BDG6/TORCON | BIS | BDG6/TORCON | BIS | BDG6/TORCON | |
| Fe-415 | 415 | 450 | 485 | 550 | 14.5 | 25.0 |
| Fe-500 | 500 | 540 | 545 | 600 | 12.0 | 20.0 |
| Fe-500 D | 500 | 550 | 565 | 600 | 16.0 | 22 |
| Fe-550 | 550 | 580 | 585 | 650 | 10.0 | 16 |
| Fe-550 D | 550 | 590 | 600 | 675 | 14.5 | 18 |
| Fe-600 | 600 | 620 | 660 | 680 | 10.0 | 16 |
